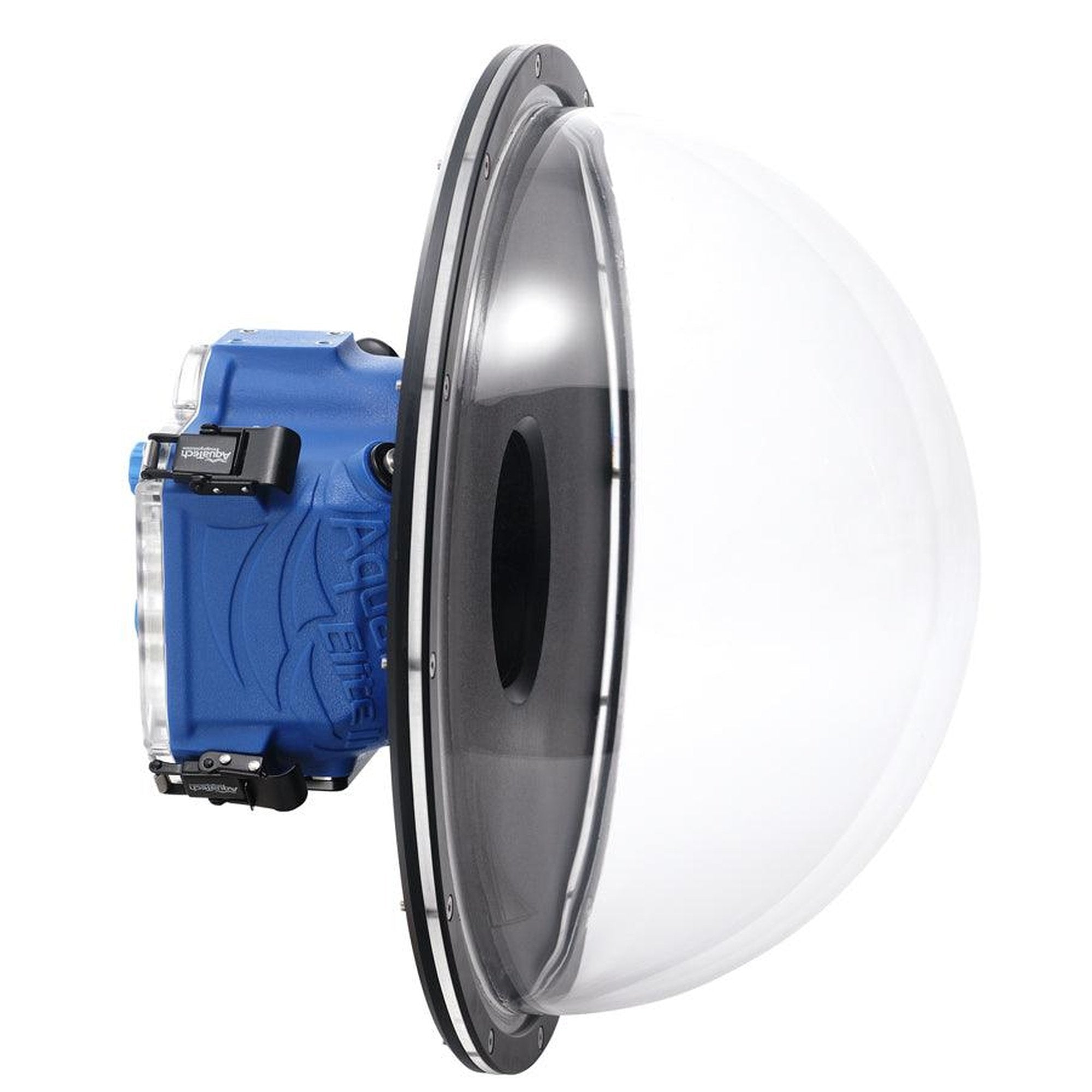

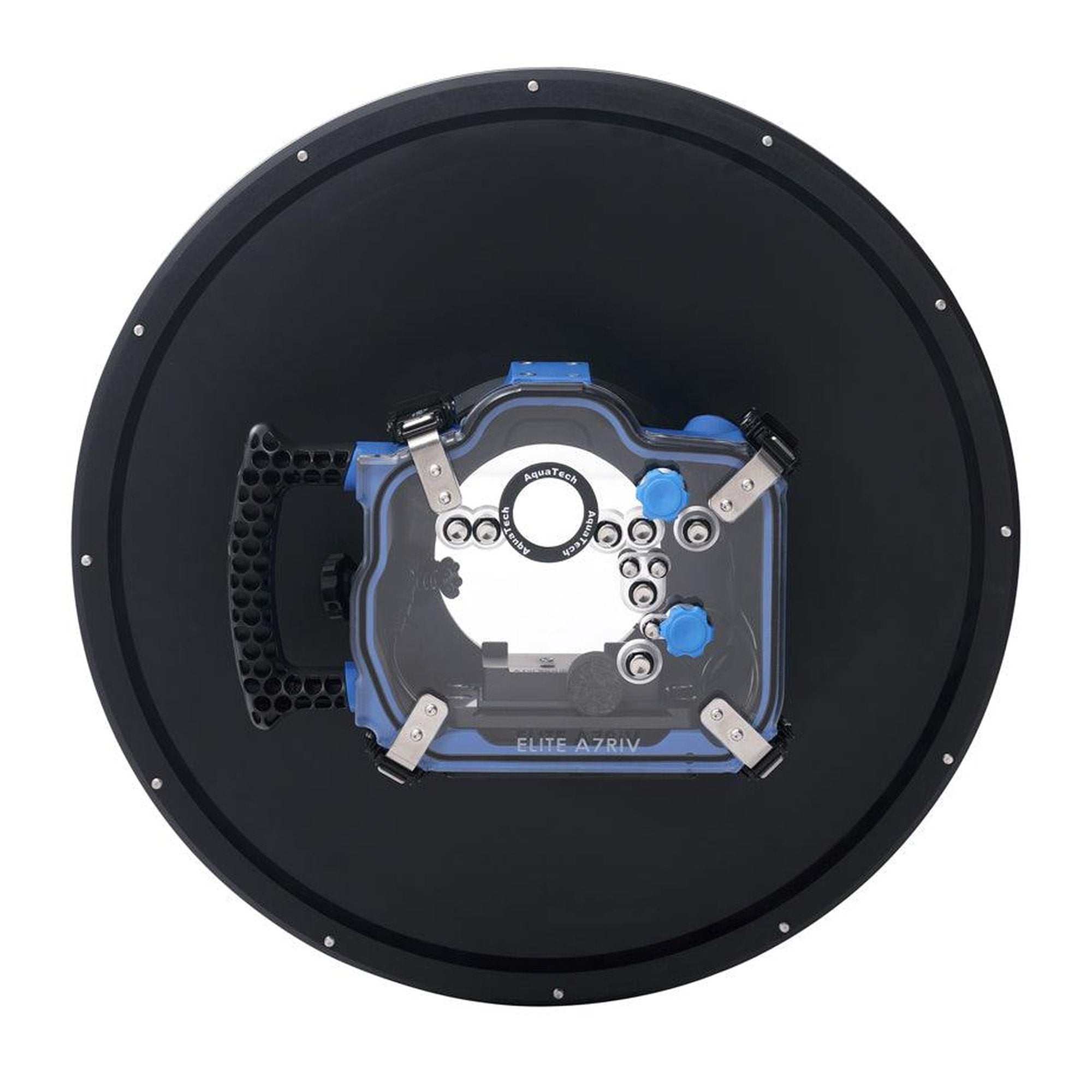

PD-16" Dome Lens Port



PD-16" Dome Lens Port

For a long time, the secret to capturing the perfect over/under image was kept close to the chest of some of the world's best water photographers, however we pulled back the curtain and introduced the PD-16”, a 16” Dome Port.

Over/unders or “split shots” are some of the most sought after images when it comes to underwater photography. They combine the scene above the water level, with the view below the water's surface to create an image which is not possible to see with the naked eye. They’re an image that connects the terrestrial world with the marine environment from a perspective that can only be seen by the use of specialised equipment.

There are in fact many reasons why you would use this specialised equipment, but there are 2 main reasons large dome ports are used for creating over/under images.
Magnification and Dome Radius.

The curved surface of a dome port counteracts the magnification effect that happens to light when it passes through water. When viewed through a flat surface (like your snorkel mask or a fish tank) subjects underwater will appear bigger than they actually are. This is not a problem when your entire composition is underwater, but when you want to view a subject above and below the surface things begin to get weird…

The large radius of a 16” dome also adds more distance between the camera lens and the water surface. This distance allows the lens to easily see above and below the water plane and also provides a smaller water line in your image which is less distracting and more visually pleasing.

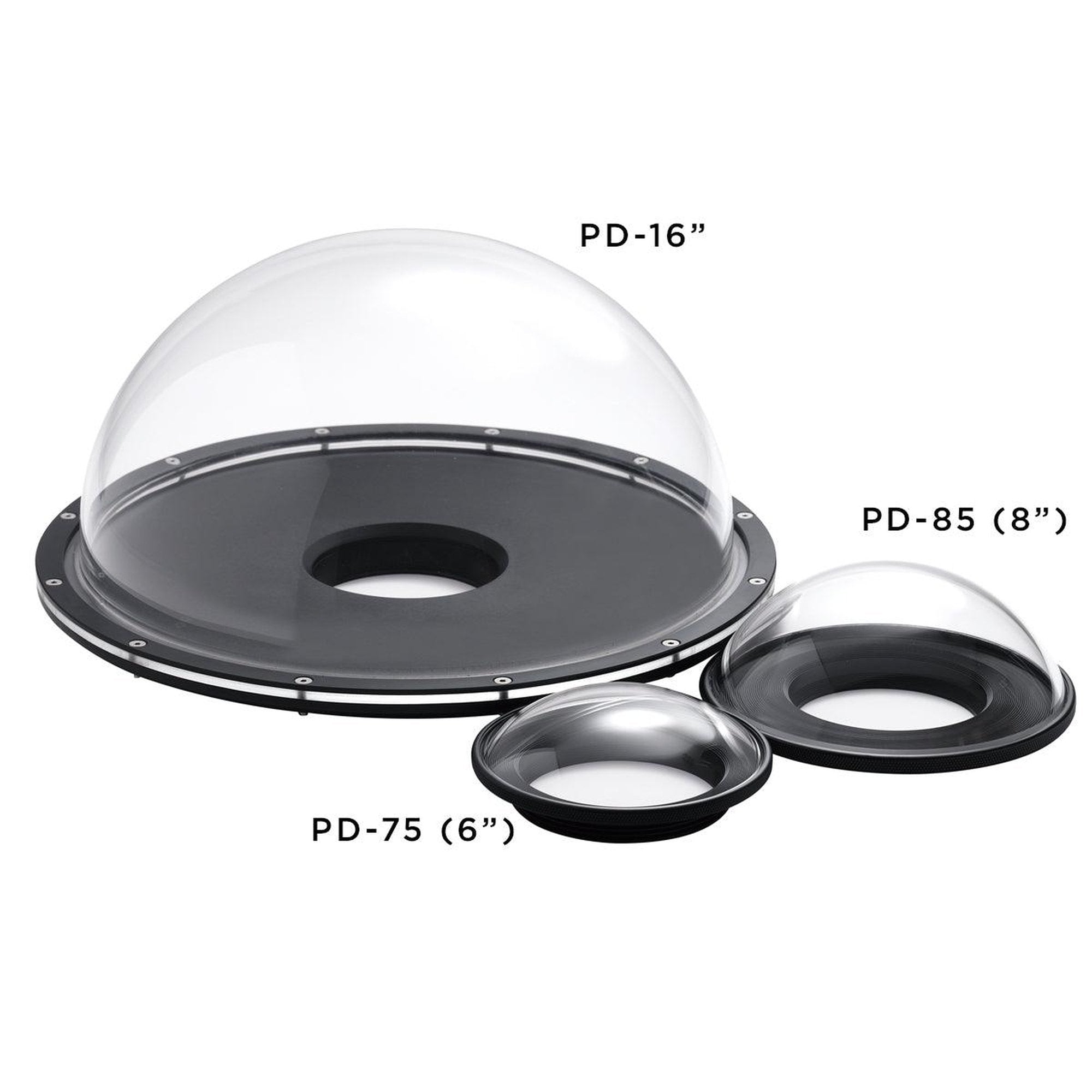

It is possible to use a wide variety of lenses and focal lengths in combination with the PD-16" Dome Port. From fish-eyes to 50s, it's just about possible to fit any wide angle lens in the PD-16. When choosing a lens it is practical to use an extension port in the same fashion as you would when using an 8" dome port to achieve the best results. So if your lens is shown as requiring an extension to work with the PD-85 on our P Series Lens Port Chart, then the same combination would generally apply when using the PD-16". If you're in doubt, just reach out to our staff via the live chat or contact@aquatech.net for more information.

• PD-16" Dome Port

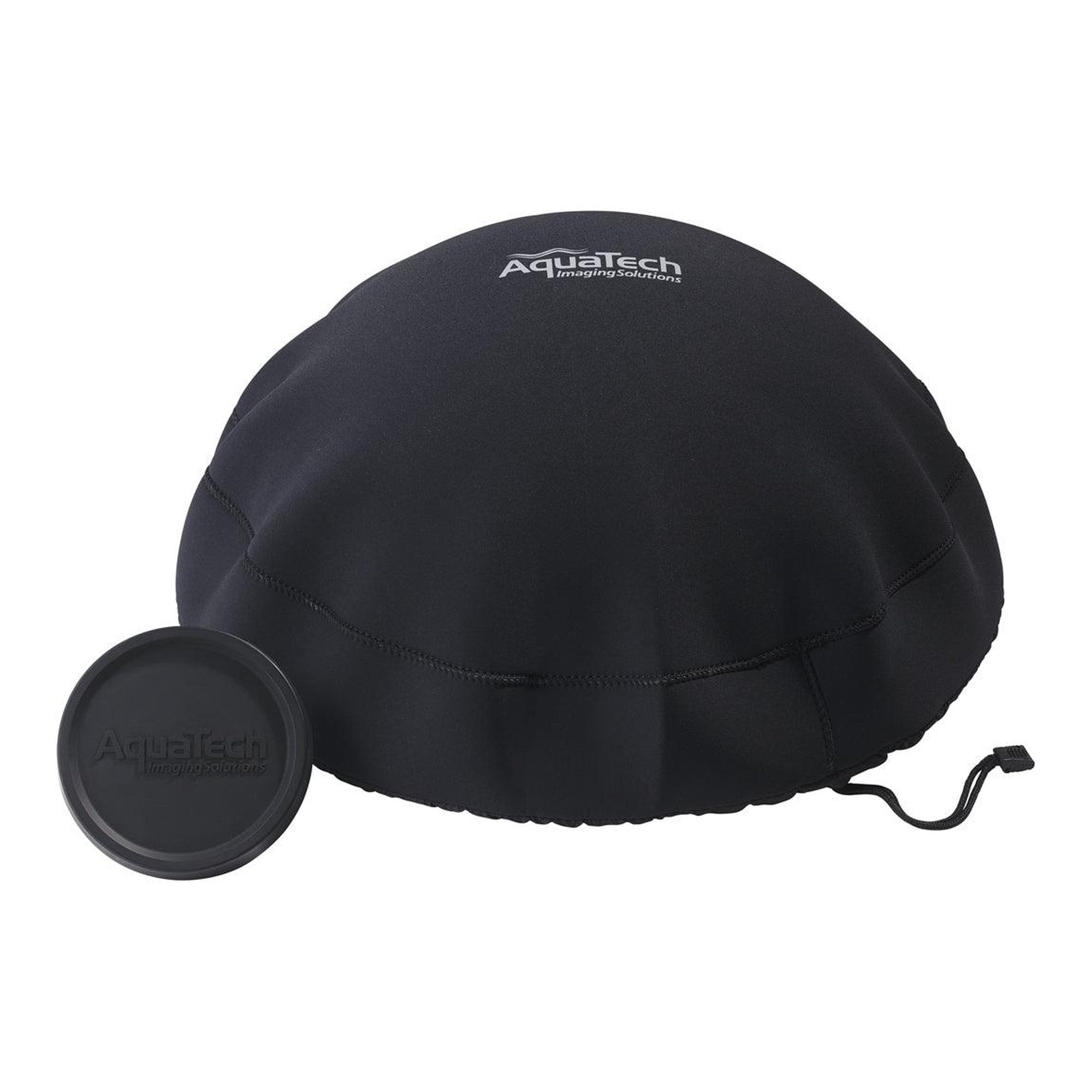

• Lens Port rear cap
• Neoprene cover

SPECIFICATIONS:

• Size: 44cm wide X 24cm high
• Weight: 7.5 lbs | 3.40 kg

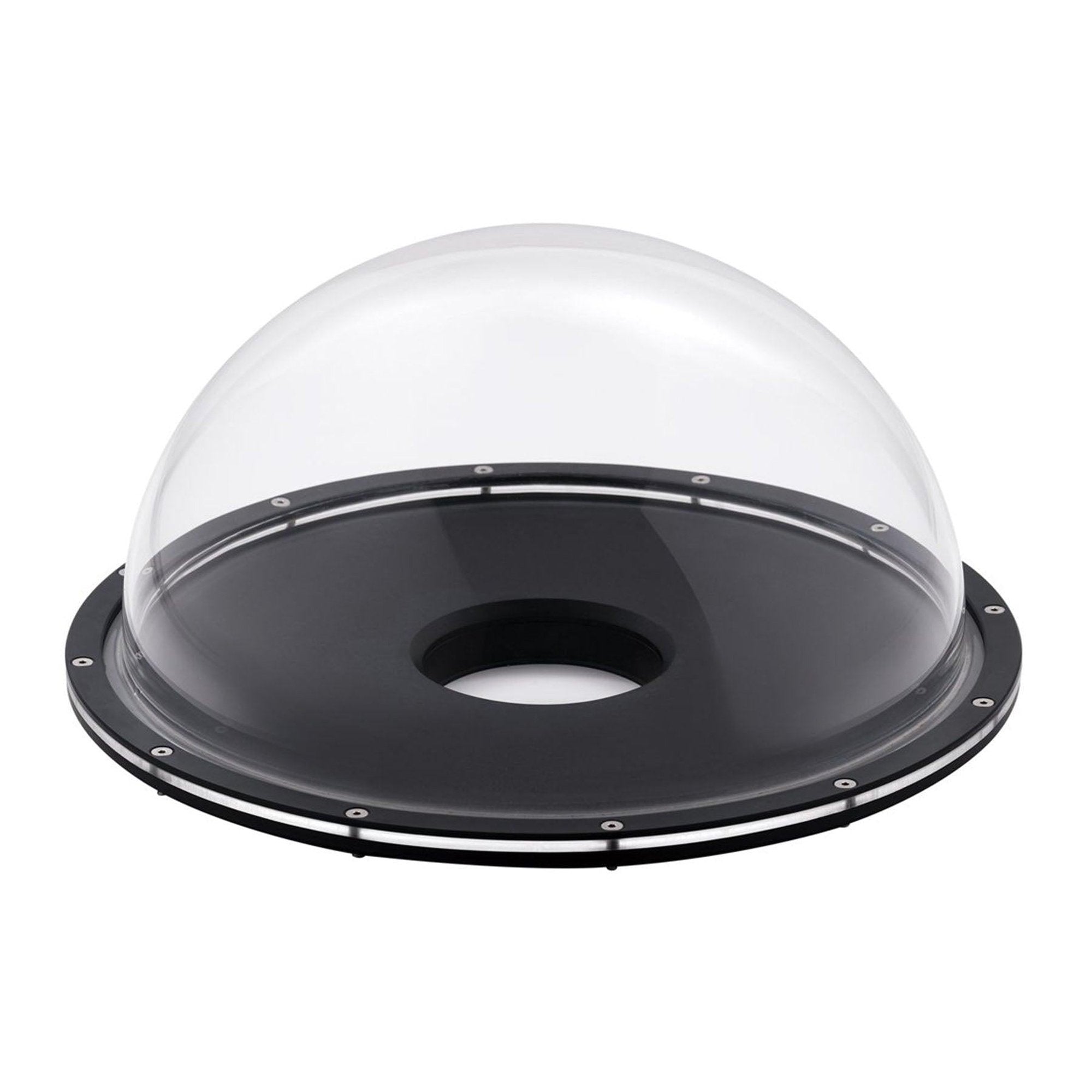

• Material: Acrylic dome element, hard anodized 6061 aluminum base, 316 stainless steel hardware



Note: Due to the size and nature of this product, it is impossible for AQUATECH to guarantee this product will arrive completely free from scratches. Minor hair line scratches may be visible on the element when delivered. These scratches will not impact on the image quality or the performance of the dome. If you have any concerns, please contact our staff at contact@aquatech.net
